BiWaze® Cough · Hospital · Mechanical Insufflation-Exsufflation (MI-E)

Breathing new life into traditional therapy™

BiWaze® Cough clears mucus from the lungs by applying positive air pressure to the airway, then rapidly shifting to negative pressure — an assisted cough engineered around respiratory physiology, with the precision control hospital care teams need at the bedside.

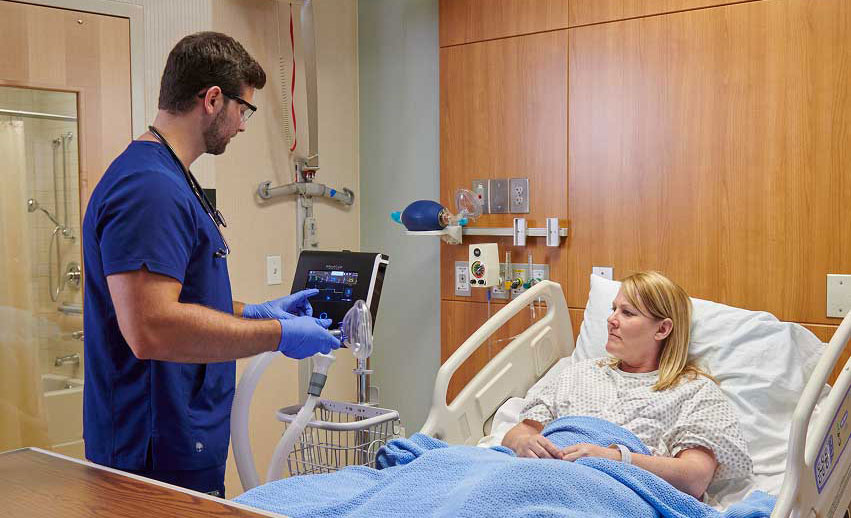

Respiratory therapist setting up BiWaze Cough at the bedside of a patient in a hospital room
The physiology

Airway hygiene is a two-system job

Mucociliary clearance provides continuous housekeeping in the conducting airways. The cough reflex is the rapid-flow, high-shear backup that clears what mucociliary clearance can't — especially from the larger, central airways.

The natural cough: irritation → deep breath in → glottic compression → high-velocity exhale that detaches and propels mucus.

When coughing becomes difficult

Muscle weakness or loss of diaphragm control can make the cough reflex ineffective. When that happens, manual or mechanical assisted cough therapy may be prescribed.

Mechanical assist (MI-E): a cough assist device gently blows air into the lungs, then quickly pulls it out. One "in-and-out" is a cough cycle; a typical therapy uses 4–6 cycles in a row.

Assisted cough therapy can make breathing easier and help patients feel more comfortable day to day.

Where BiWaze® Cough is used in the hospital

Critical & emergency care

  • Emergency Department
  • Trauma
  • Intensive Care Units

Inpatient & recovery

  • Medical / Surgical Units
  • Rehabilitation Areas
  • Long-Term Ventilation and Weaning Units
Published MI-E evidence

The evidence for MI-E at extubation

In a randomized controlled trial, adding MI-E to the extubation protocol was associated with improved post-extubation outcomes compared with standard care.

31%
Absolute reduction in reintubation
17% with MI-E protocol vs. 48% with standard care
6.1
Fewer days on mechanical ventilation
11.7 vs. 17.8 days
6.7
Fewer post-extubation ICU days
3.1 vs. 9.8 days

Gonçalves MR, Honrado T, Winck JC, Paiva JA. Effects of mechanical insufflation-exsufflation in preventing respiratory failure after extubation: a randomized controlled trial. Crit Care. 2012;16(2):R48. — Published study of MI-E therapy; not a BiWaze-specific clinical trial.

How it works

The assisted cough cycle

A cough cycle is pause, inhale, exhale — delivered in sequences of 3–6 cycles, with rest between sets.

MI-E therapy: inspiratory phase fills the lungs, expiratory phase reverses flow to pull air and mucus out, pause phase rests on positive airway pressure.
Cough cycle diagram: inhale, exhale, pause
The BiWaze Cough cycle: inhale, exhale, pause.
PAP on Pause: during the pause phase, BiWaze Cough can provide positive pressure flow, so the patient's airways are reopened gradually after the exhale — instead of being forcefully reopened with the next inhale. Bench testing showed that PAP on Pause increased end-expiratory lung volume in a test lung.¹ PAP on Pause overview →

¹ Malone P, DiBlasi R. BiWaze® Cough System – A bench study evaluation and comparison of cough efficiency (Rev. 2.0). ABM Respiratory Care; 2022.

At the bedside

A typical therapy plan

MI-E therapy is typically titrated to the individual — starting low and increasing as tolerated.

Sequence

3–6 cough cycles

Delivered in rapid succession. One cough cycle = pause + inhale + exhale.

Rest

20–30 seconds

Between sets, let the patient rest and clear secretions visible in the mouth, throat, or tracheostomy tube.

Repeat

3–6 times

Repeat the sequence, or until secretions are sufficiently expelled.

Titrate

Start low, go slow

Begin with lower pressures (e.g., +10–15 / −15 cm H₂O) and increase as tolerated. Set oscillations to patient comfort.

The BiWaze® Cough difference

Hygienic. Intelligent. Intuitive.

A dual-blower design, engineered to mimic the natural way a body coughs.

Hygienic

  • Dual-blowers independently generate positive and negative airflow — separating exhaled mucus from inhaled air
  • Optional dual-lumen circuit further separates exhaled mucus and bacteria from fresh inhaled air
  • Disposable breathing circuit designed for single-patient use

Intelligent

  • Software algorithms dynamically control blowers and integrated valves; each pathway has sensors measuring pressure and flow
  • CoughCue lets the device synchronize with the patient's own effort — slow deep inspiration, optional hold, then expiratory phase — rather than forcing a preset timing
  • Programmable high-frequency oscillations delivered consistently through the entire cough cycle¹
  • Arc Connect™ app with Remote Control, live waveforms, and shareable reports

Intuitive

  • 7″ touchscreen with simplified therapy screen and auto/manual modes
  • Up to 10 stored therapy profiles and up to 20 cycles per therapy
  • Manual-mode titration feedback (thumbs up/down after each cycle) to support comfort-driven settings
  • Slim, modern design with a lock screen to prevent unintended touches

¹ Malone P, DiBlasi R. BiWaze® Cough System – A bench study evaluation and comparison of cough efficiency (Rev. 2.0). ABM Respiratory Care; 2022.

Arc Connect™ for BiWaze Cough

Therapy tracking and remote visibility

Arc Connect adds a digital support layer for compatible BiWaze Cough systems — from live waveforms during therapy to post-session insights.

Remote Control + live waveforms

  • View live flow, pressure, and volume curves as therapy is delivered
  • Start or pause therapy from the app when Remote Control is connected
  • Toggle individual curves and adjust scale/zoom to focus on session detail

Post-session insights

  • Review waveform patterns from completed sessions
  • See therapy timing, cycle counts, and adherence information
  • Reference therapy settings and titration feedback

Tracking + sharing

  • Track therapy activity and adherence over time
  • Downloadable reports and trend insights
  • Permission-based sharing of patient-level data with care teams

Requires compatible BiWaze Cough software v1.23.0+ and Arc Connect on iOS 16.0+ or Android 9.0+. Remote Control/live waveforms use Bluetooth; therapy data sync requires Wi-Fi. Guest access is available for Remote Control/live waveform use; account setup is required for saved tracking and sharing features.

Setup

The system, ready for the unit

A control unit with a 7″ touchscreen, single-patient circuit options, and mobility choices for each care setting.

In the hospital

BiWaze Cough mounts on a mobile cart with an integrated basket, so therapy moves easily between rooms and care units.

For home care, the same system travels in a padded carrying bag — one therapy platform across settings.

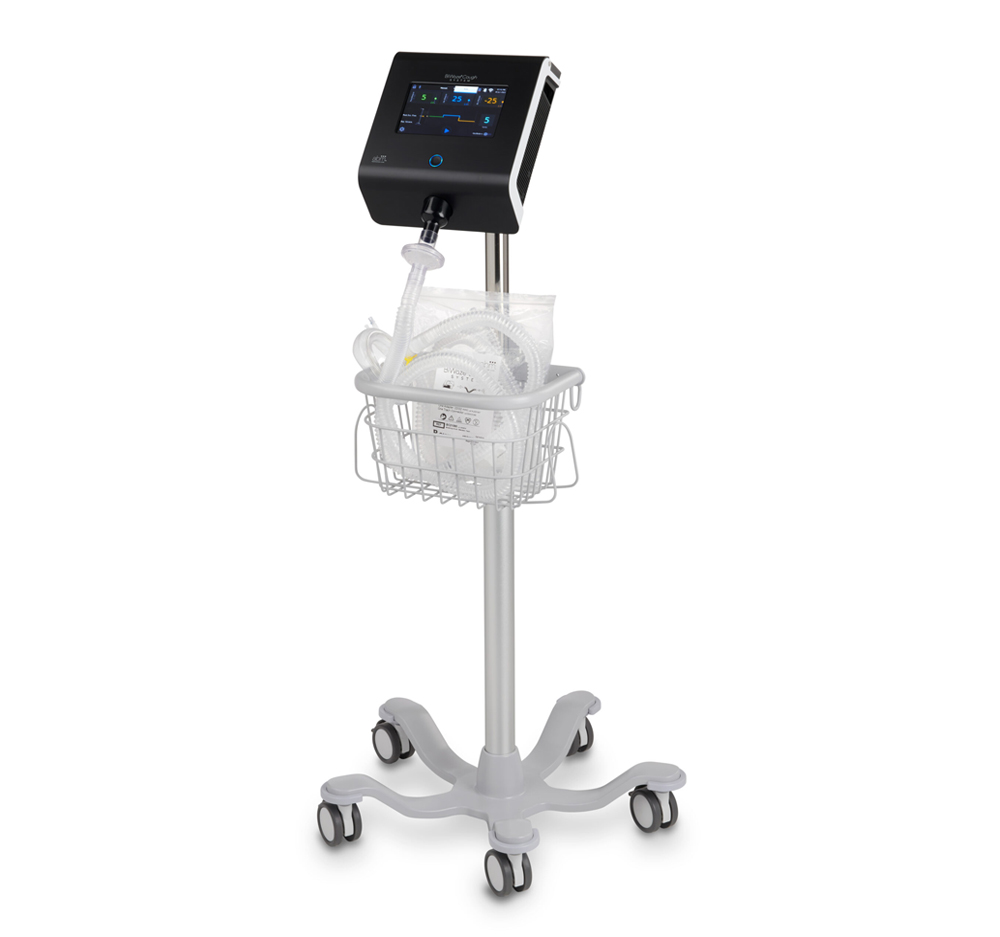

BiWaze® Cough system on a mobile cart with basket

Two circuit options, one simple assembly — each circuit is single-patient use.

Single-lumen circuit assembly

Step-by-step assembly, from control unit to patient interface.

Coaxial dual-lumen circuit assembly

The dual-lumen option separates exhaled mucus and bacteria from fresh inhaled air.

Evidence & access

Explore the clinical research — and the coding path.

BiWaze® Cough — Cough Efficiency Bench Study

In-vitro evaluation of cough efficiency conducted by Seattle Children's Hospital and Research Institute: BiWaze Cough delivers a consistent, square-shaped inhalation flow pattern resembling natural pre-cough inspiration, with a distinctive expiratory flow interruption similar to glottic closure.¹

Read the white paper →
HCPCS E0482 A7020

Coding & coverage resources

BiWaze® Cough is assigned HCPCS code E0482 (cough stimulating device system), with A7020 for the breathing circuit. Our team supports hospital and home-care partners with coding education, documentation resources, and prescription forms.

Learn more about reimbursement →

¹ Malone P, DiBlasi R. BiWaze® Cough System – A bench study evaluation and comparison of cough efficiency (Rev. 2.0). ABM Respiratory Care; 2022.

Specifications & resources

The details, all in one place.

Maximum positive pressure70 cm H₂O
Maximum negative pressure−70 cm H₂O
Maximum pause pressure15 cm H₂O
Cough cyclesUp to 20 per therapy
OscillationFrequency 5–20 Hz · Amplitude 1–5
TimingInspiratory, expiratory & pause time 0–5 seconds (auto mode)
Modes & presetsAutomatic and Manual · up to 10 stored therapy profiles · inspiratory flow Low/Medium/High · trigger sensitivity 1–10
Device27 × 23.5 × 9 cm (10.5″ × 9.2″ × 3.5″) · 9 lbs (4 kg) including internal battery · 7″ touchscreen
BatteryBuilt-in lithium-ion battery included — supports up to 2 hours of therapy (based on a new, fully charged battery)
CircuitsSingle-lumen or coaxial dual-lumen breathing circuits, single-patient use · 30 days or 90 typical therapies, whichever comes first
EnvironmentOperating temperature 40–95°F (5–35°C) · relative humidity 15–95% non-condensing
RegulatoryFDA 510(k) K191912 · View the FDA clearance letter (PDF) →

Downloads

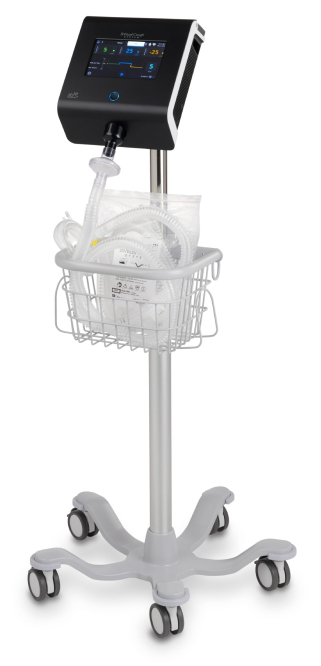

BiWaze Cough on its mobile cart with basket
How to order

Bring BiWaze® Cough to your facility

Whether you’re ready to learn more, see BiWaze Cough in action, evaluate the system, or move forward with implementation, our team is here to help. Connect with us for a demonstration, clinical in-service, product evaluation, and staff training.

Connect with our hospital care team →

Questions

BiWaze Cough FAQ.

Automatic or manual delivery?

Both. Automatic mode cycles the inhale, exhale, and pause phases on preset timing; manual mode gives the clinician direct control of each cycle — with optional thumbs-up/down titration feedback after each cycle.

How many patient profiles can be stored?

Up to 10 personalized therapy profiles, with advanced programming to customize pressures, durations, oscillations, and cycles.

Can it run on battery?

Yes — the integrated lithium-ion battery supports up to 2 hours of therapy, and the system moves easily between rooms and care units. A cart is available for hospital use.

What's new in the latest software?

Compatible systems (software v1.23.0+) support CoughCue patient-synchronized triggering, titration feedback, and Arc Connect Remote Control with live flow, pressure, and volume waveforms.

How do we order for our facility?

Contact the ABM Respiratory Care team through our Contact & Support page or call 877-226-7201.

See it with your team.

A side-by-side evaluation — in your unit or online — beats any brochure. Schedule a demo and our team will set it up.

Questions about coding or reimbursement? Learn More →
